CamBLink 1394b Development Kit for Digital Cameras

The CamBLink is the first product in the ATRA Vision family of customized embedded IEEE-1394b Link Layer Controllers.

It may be used as a flexible prototyping platform for developing custom 1394a/1394b applications.

Link Layer Controller IP Core

The Link Layer Core is designed according to IEEE standard for a High-Performance Serial Bus (IEEE Std 1394b -2002).

It is designed for low cost Xilinx Spartan FPGA family and optimized for design requirements of 1394 Trade Association's IIDC Digital Camera Specification, V1.30.

With this core, a designer can build customized, bilingual, 1394a/1394b Digital Camera, with maximum packet speed of 800Mbit/s.

Fully Verified and Tested with CamBLink Development Board.

Development Board

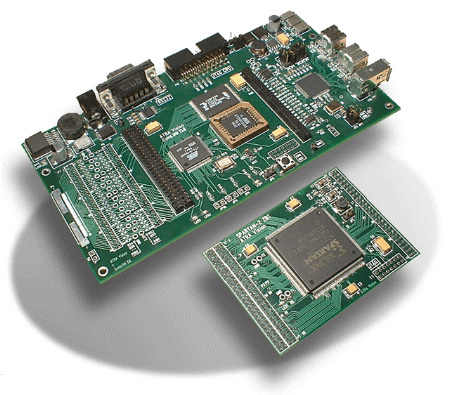

The CamBLink Development Board is a powerful prototyping platform for developing and debugging custom 1394b applications.

It allows a designer to quickly evaluate performance of 1394b Link Layer Controller IP core.

• Modular FPGA card.
• TSB81BA3 3 port bi-lingual PHY (Physical Interface chip).
• Two 1394b ports and one 1394A legacy port.
• Optional galvanic Link-Phy isolation.
• Configurable Cable Power distribution.
• 66MHZ Atmel ARM-Thumb 32 RISC Microcontroller.
• RS232 and JTAG debugging ports.

Additonal Info

Visit the Resources section for more documentation.
